Shenzhen Baijie Technology has been a manufacturer of High quality circuit board in China for more than 10 years.We are committed to providing users High quality circuit board with elaborate craftsmanship and continuous pursuit of innovation in order to break the design and process constraints.
Product Description
| CPU | A64, Quad-core Cortex™-A53. Frequency reaches 1.15GHz |
| Chip Model | AllwinnerA64, A133 |
| RAM | 1GB/2GB(DDR3) |
| Flash | EMMC 8GB (16GB/32GB/64GB for options) |
| Network | Perfectly support 10M/100M/1000M, ethernet interface adaptable |
| Communication | 1pc buzzer 5 pcs buttons 1-ch RS232 1-ch 10/100/1000Mbps industrial Ethernet port Video decoding: 1080P@60Hz Extension 24 pins GPIO interface,including 14pcs 3.3V normal IO interface,1-ch 12C, 4pcs 1.8V normal IO ports, 2pcs 3.3V Battery and 2pcs GND 2-ch highspeed USB HOST 1-ch high speed USB OTG 4-ch TTL (it can used to be the normal IO interface) 1-ch TF card interface, 1-ch output SDIO interface 1-ch 40 pins RGB TTL RGB interface,support all kinds of LCD, MAX 1920x1200@60Hz 1-ch headphone 1-ch OUTLINE 1-ch MIC interface 1-ch speaker output interface |
| Display | support HDMI output 4K@30Hz, support 1080P@60Hz，LVDS 1366x768@60Hz, MIPI 1920x1080@60Hz，RGB 1920x1080@60Hz |
| TP interface | 1-ch TP interface |
| Memory Interface | 1-ch TF card slot |
| GPIO | Support |
| Voltage | DC 5V, BATTERY 3.7V |
| Audio Player | Loop playing, timing playing, emergent playing |
| Size | 60x40x3(mm) |

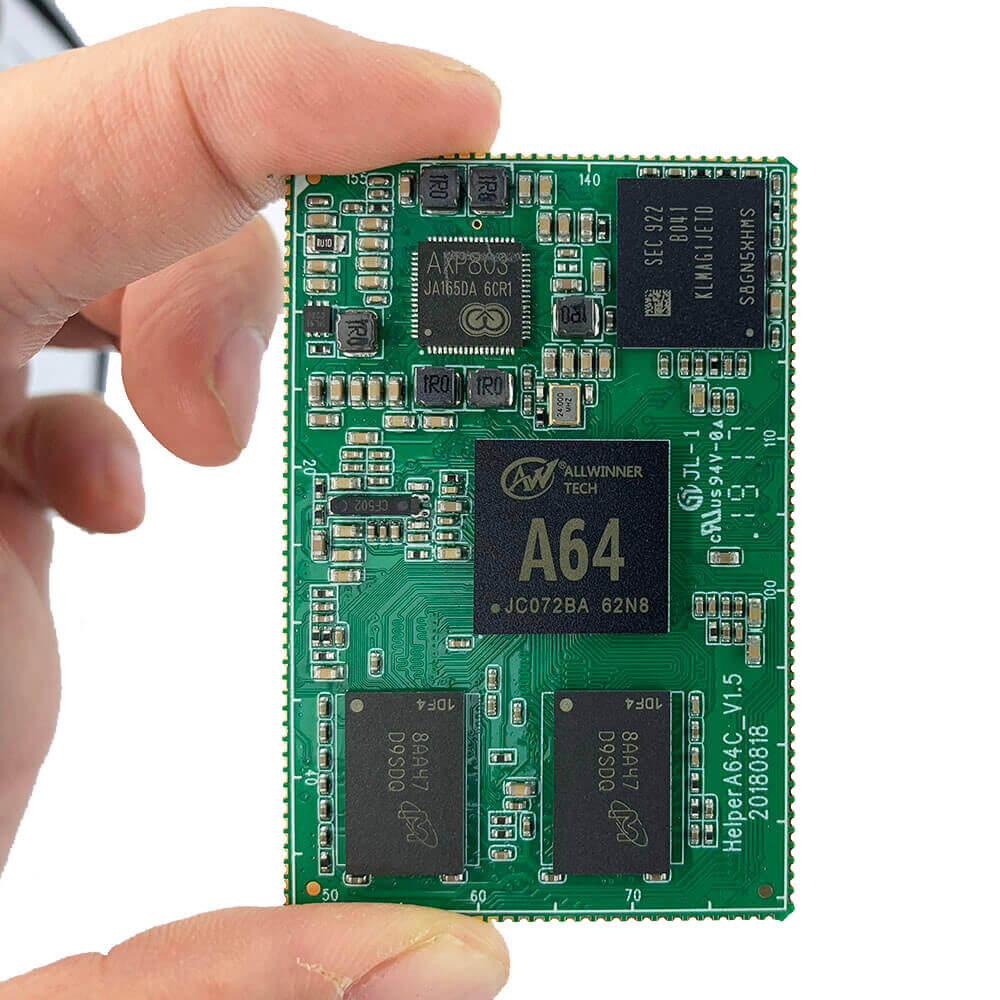

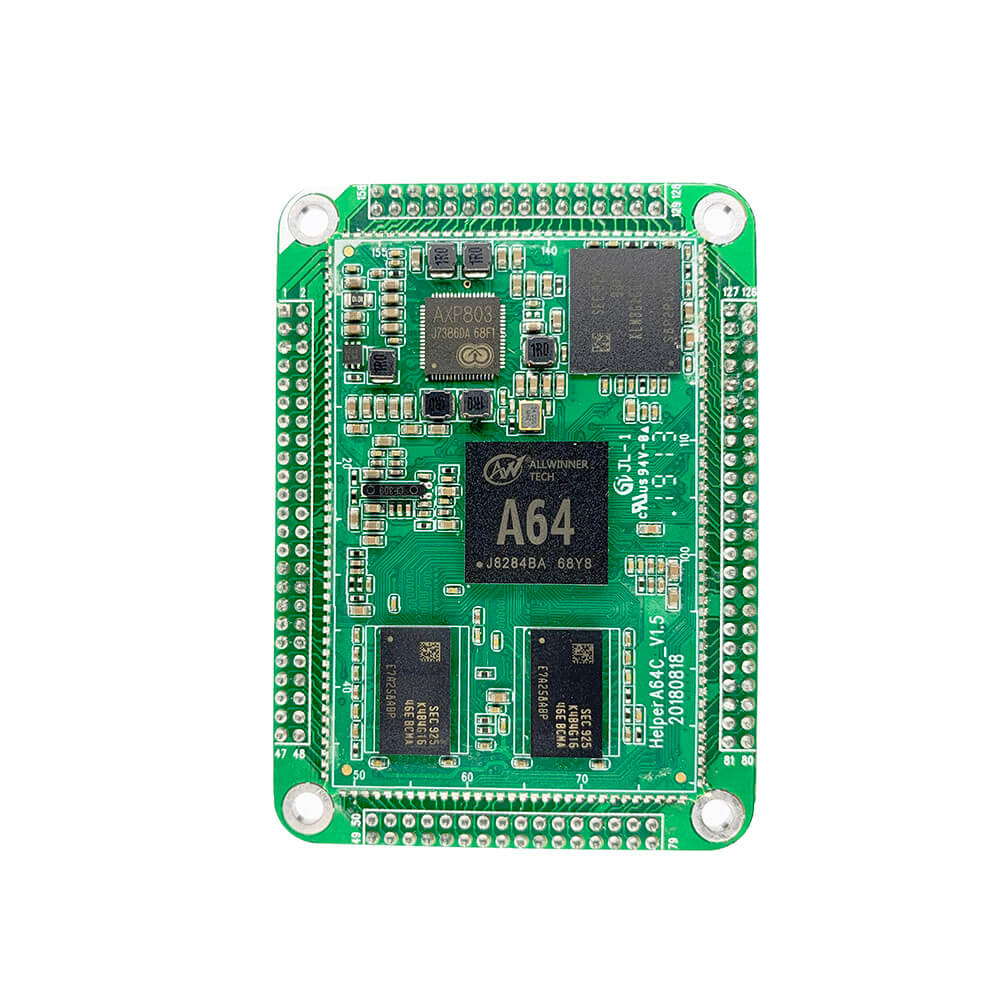

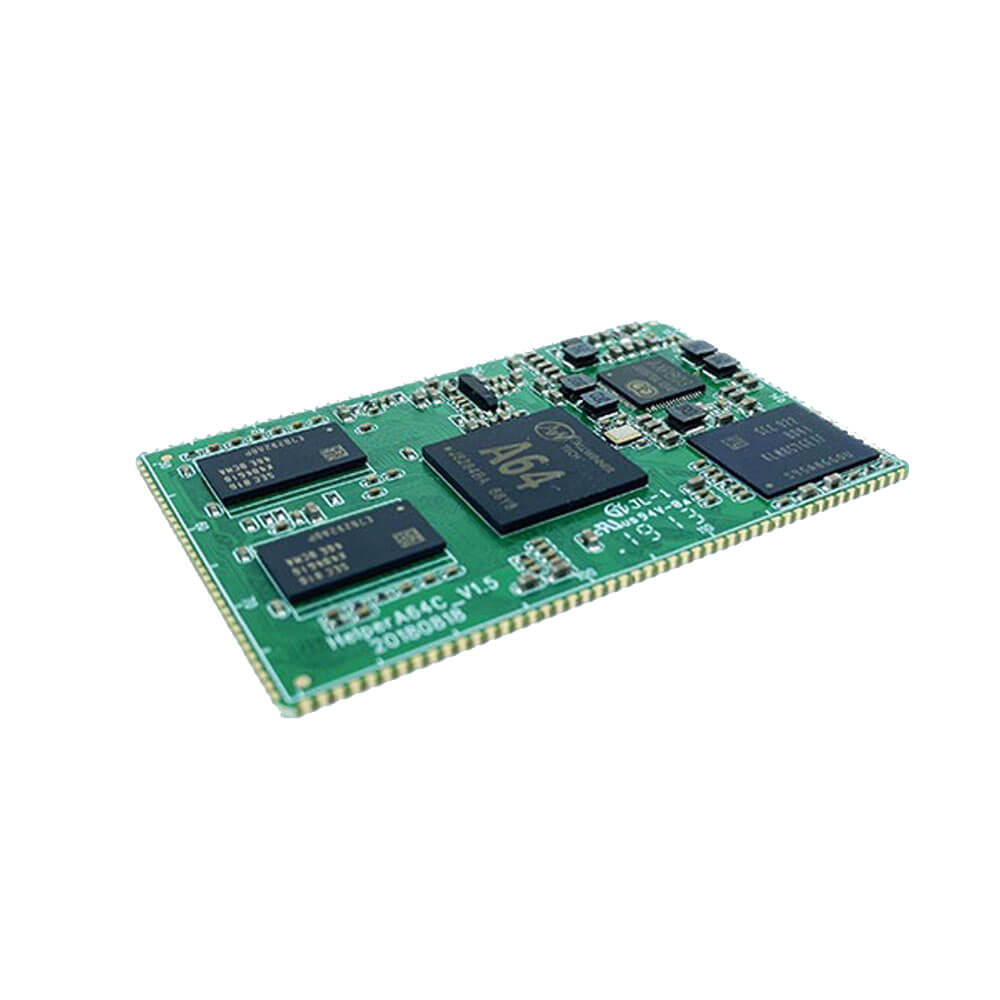

| Hardware context | Allwinner helper A64 core board, 7inch LCD screen(1024x600 with Capacitive Sensing Module), 3W loudspeaker option, |
| System | Support Android 6.0, LINUX+QT5.6, UBUNTU 18.04 |
Yes, we are the manufacturer. we can do both OEM and ODM as you required.
Usually it is 18 months for all the boards and we can change the new board for you immediately if it’s our problem. We can also supply the program updating free.
Yes, we can provide hardware design + software program + pcb layout + casing service for supplier and give a competitive price.
We are specializing in the development board.
Usually it takes about 1~45 days as it depends on the functions you required.Generally, it will take 35 days after receiving your advance payment for mass order. If the products your ordered are the standard products we can send them within 3 days.If the customization products we will send within 45 days.
There is no MOQ is 1 pc.
The shipping cost is determined by shipping method you choose, the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Please send us full manufacture requirements or documents for quotation, i.e. gerber files, BOM, samples if it is necessary.
We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.
