Shenzhen Baijie Technology has been a manufacturer of High quality circuit board in China for more than 10 years.We are committed to providing users High quality circuit board with elaborate craftsmanship and continuous pursuit of innovation in order to break the design and process constraints.

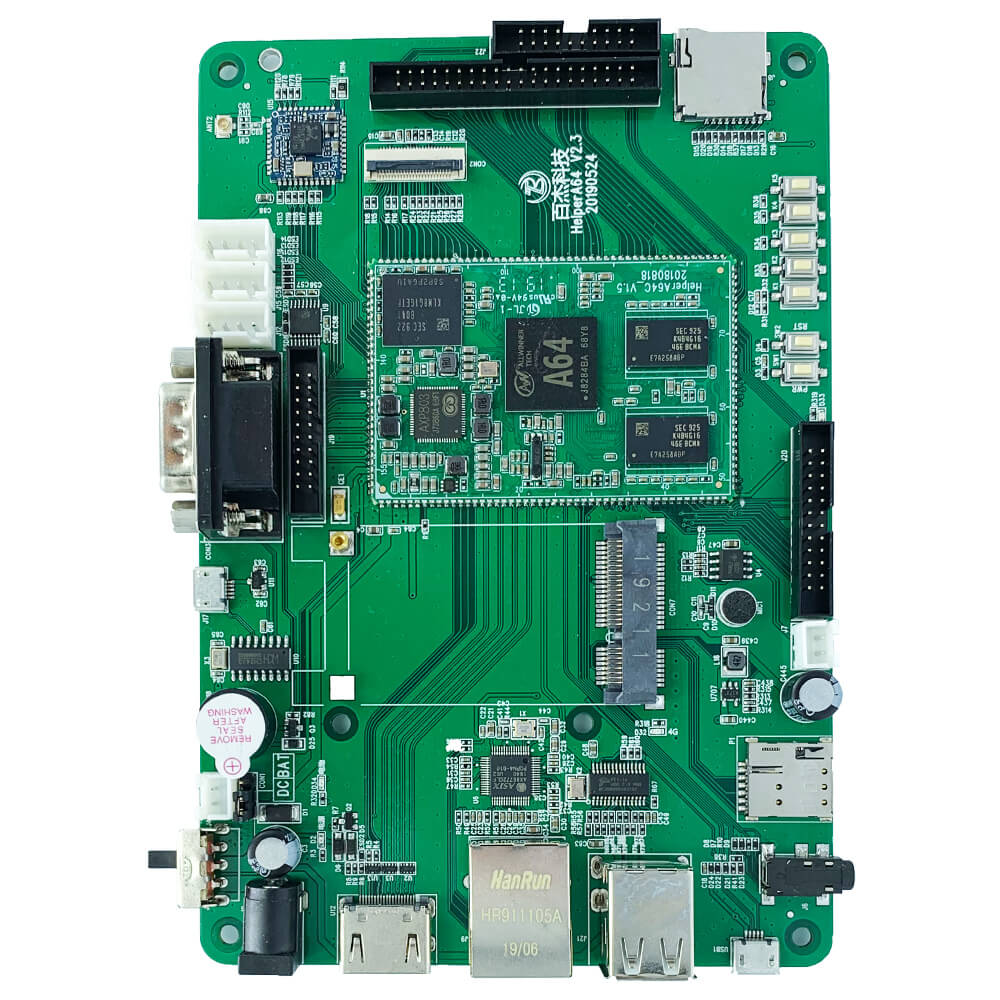

Product Description
| CPU | 64 bit 4 core A53 highest frequency: 1.15GHz |
| Chip Model | AllwinnerA64, A133 |
| Memory | 1GB |
| Storage | 8G EMMC (MLC not TLC) |
| Decoding | 1080P@60Hz decoding |

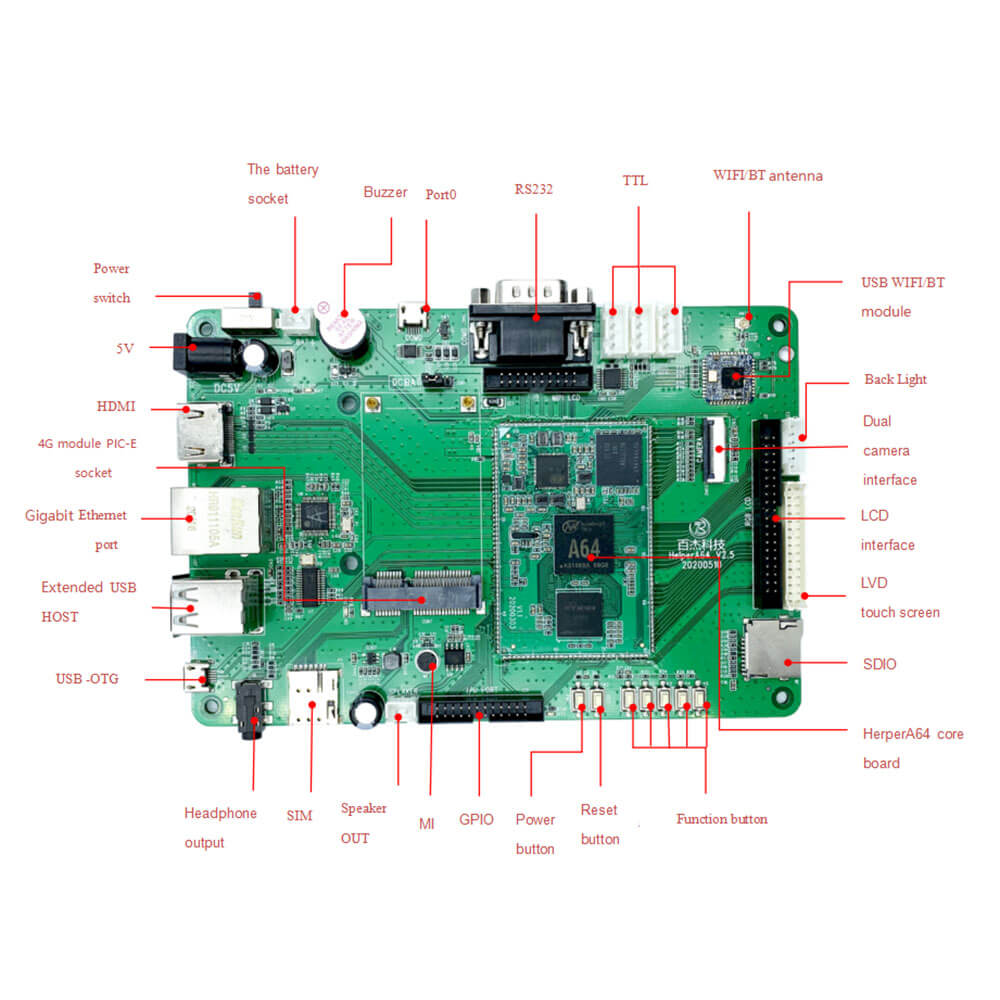

| Display | support HDMI output 4K@30Hz, 1080P@60hz, LVDS 1366x768@60Hz, MIPI 1920x1080@60Hz, RGB 1920x1080@60Hz 2-ch high-speed USB HOST, 1-ch high-speed USB OTG 4-ch TTL serial port (can be used as the ordinary IO port) 1-ch 40-pin RGB TTL LCD interface can support all kinds of RGB interface LCD screens, up to 1920x1200@60Hz 1-ch 20-pin LVDS TTL LCD interface can support all kinds of LVD interface LCD screens, the highest 1366x768@60Hz 1-ch leads to the TF card interface and 1-ch leads to the SDIO interface 1-ch CSI camera interface, can do time-sharing before and after double shot, complete power supply, maximum support of 5M pixels (camera needs to be equipped with another) 1-ch headphone output 1-ch LINEOUT output 1-ch MIC interface 1-ch PWM, can connect the backlight control 1pc buzzer 5 pcs normal buttons Built-in USB to serial, directly plug in USB you will see the serial debugging information 1-ch 10/100 base Ethernet interface 1-chl 2.4g WIFI interface Extended 24-pin IO interface, including 14 3.3v normal IO ports, 1-chl I2C, 4 1.8v normal IO ports, two 3.3v power supplies and two ground ports |
| Power supply | DC 5V, battery 3.7v 1-ch speaker output interface, support external 4 -Ohm 2W output |
Yes, we are the manufacturer. we can do both OEM and ODM as you required.
Usually it is 18 months for all the boards and we can change the new board for you immediately if it’s our problem. We can also supply the program updating free.
Yes, we can provide hardware design + software program + pcb layout + casing service for supplier and give a competitive price.
We are specializing in the development board.
Usually it takes about 1~45 days as it depends on the functions you required.Generally, it will take 35 days after receiving your advance payment for mass order. If the products your ordered are the standard products we can send them within 3 days.If the customization products we will send within 45 days.
There is no MOQ is 1 pc.
The shipping cost is determined by shipping method you choose, the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Please send us full manufacture requirements or documents for quotation, i.e. gerber files, BOM, samples if it is necessary.
We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.
